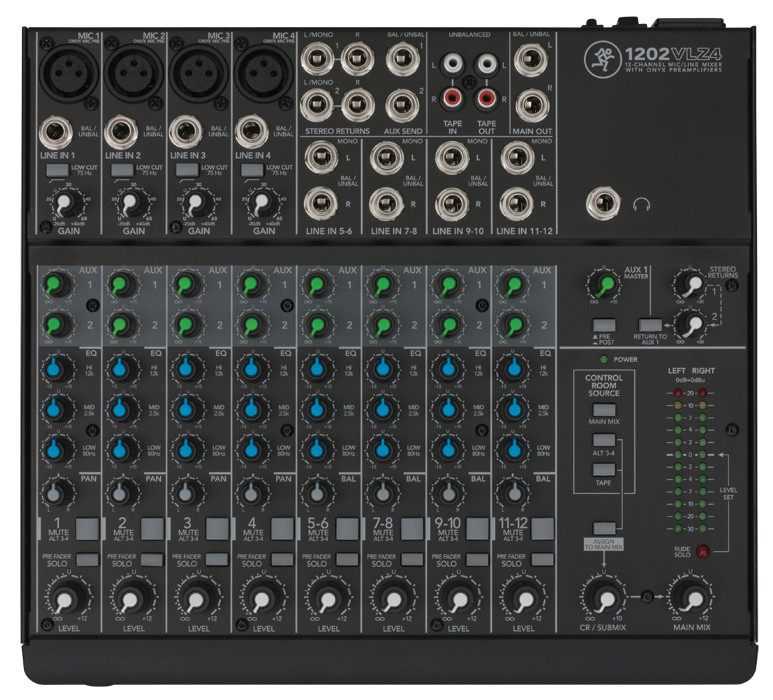

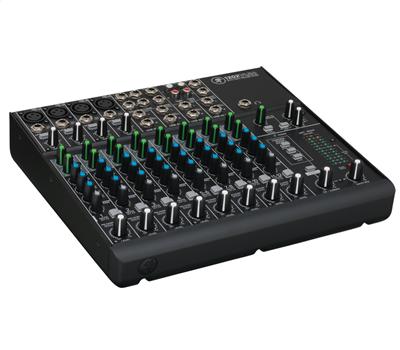

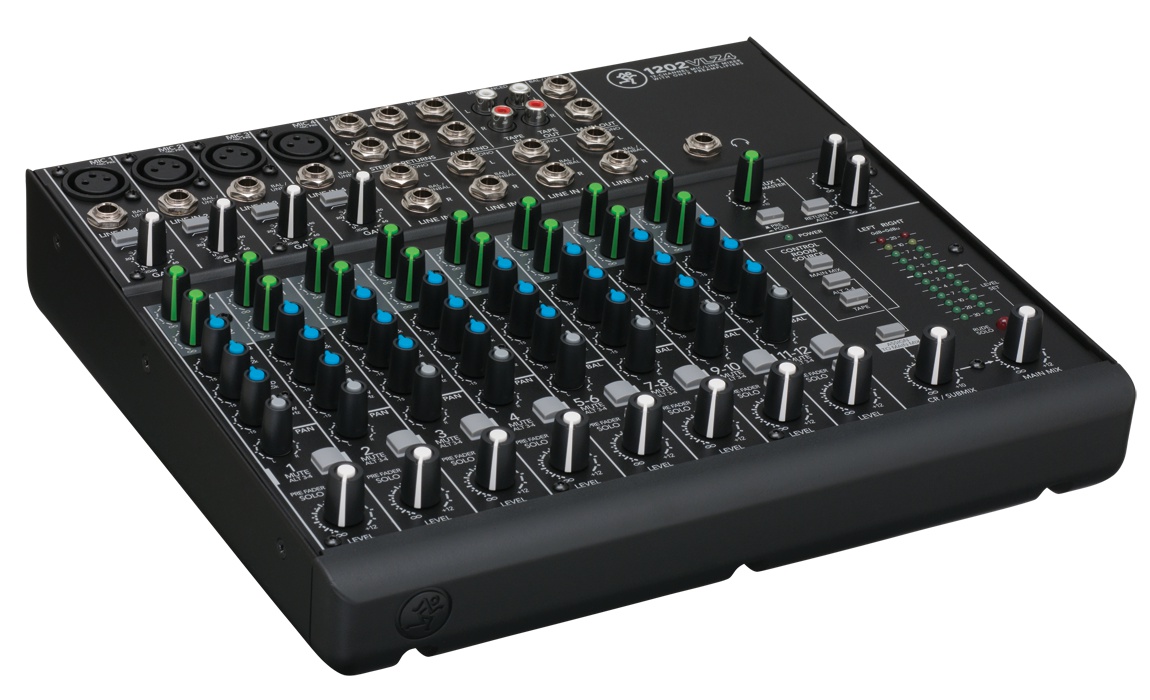

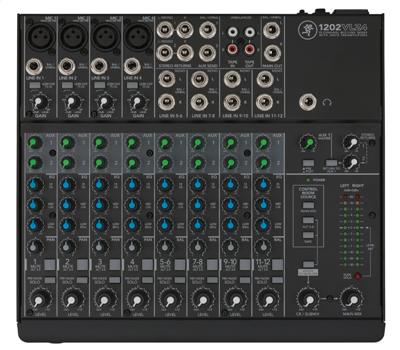

Mackie 1202 VLZ4

THE ORIGINAL NO-NONSENSE COMPACT MIXER SERIES


Now featuring Mackie’s flagship Onyx mic preamps, the comprehensive Mackie VLZ4 line delivers the proven feature set, high-headroom/low-noise design and “Built-Like-A-Tank” construction that created an industry more than 25 years ago. From every input to every output, VLZ4 is optimized to deliver professional-quality results each and every time.



1202VLZ4
12-CHANNEL COMPACT MIXER
12-channel mixer featuring Mackie signature high-headroom/low-noise design
4 boutique-quality Onyx mic preamps
Ultra-wide 60dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20Hz – 50kHz)
Improved RF rejection perfect for broadcast applications
Phantom power for condenser mics
12 high-headroom line inputs
4 balanced inserts perfect for integrating outboard gear
3-band EQ (80Hz, 2.5kHz, 12kHz)
18 dB/oct 75Hz low-cut filter on mic input channels
2 aux sends, level, pan and PFL solo on each channel
2 stereo returns for connecting FX processor or other stereo source
ALT 3/4 stereo bus for added routing flexibility
Control room / phones source matrix
High-resolution 12-segment stereo meters
Sealed rotary controls resist dust and grime
“Built-Like-A-Tank” rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
Rack-mountable design using optional rack ear kit
Multi-voltage power supply for worldwide use
