Mackie 1604 VLZ4

THE ORIGINAL NO-NONSENSE COMPACT MIXER SERIES


Now featuring Mackie’s flagship Onyx mic preamps, the comprehensive Mackie VLZ4 line delivers the proven feature set, high-headroom/low-noise design and “Built-Like-A-Tank” construction that created an industry more than 25 years ago. From every input to every output, VLZ4 is optimized to deliver professional-quality results each and every time.

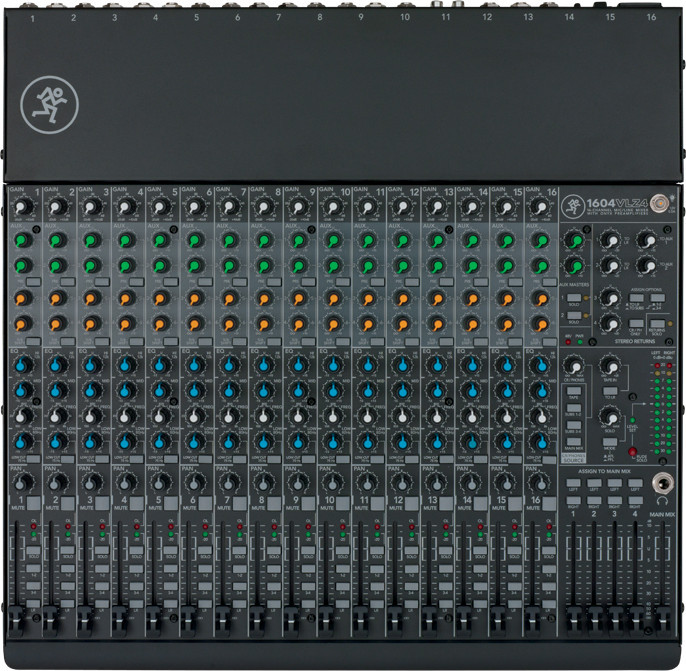

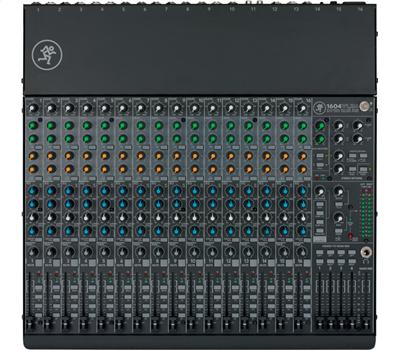

1604VLZ4
16-CHANNEL 4-BUS COMPACT MIXER
16-channel mixer featuring Mackie signature high-headroom/low-noise design
16 boutique-quality Onyx mic preamps
Ultra-wide 60dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20Hz – 50kHz)
Phantom power for studio condenser mics
Improved RF rejection perfect for broadcast applications
Phantom power for condenser mics
16 high-headroom line inputs with +4/-10 operation control
16 balanced inserts perfect for integrating outboard gear
3-band EQ with sweepable midrange
18 dB/oct 75Hz low-cut filter on mic input channels
4 aux sends, level, pan, solo and overload/mute LEDs on each channel

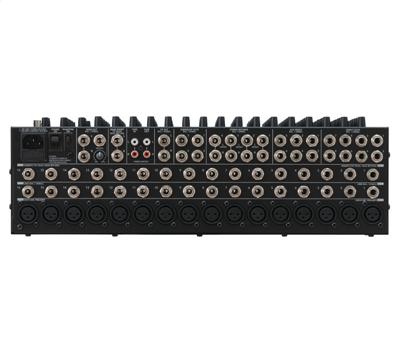

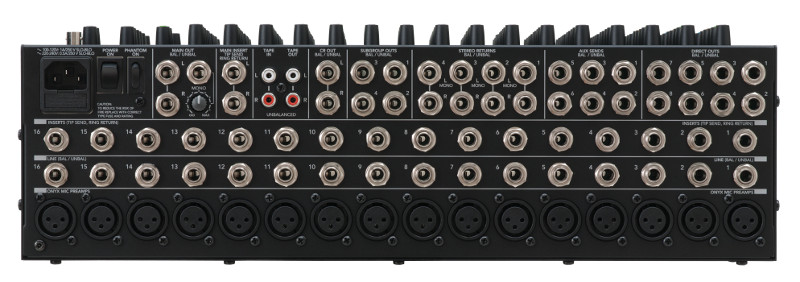

4 stereo returns, 8 direct outs and 4 group/bus outputs
60mm long-wearing log-taper faders
Control room / phones multi-input source matrix
High-resolution 12-segment stereo meters
Sealed rotary control resist dust and grime
“Built-Like-A-Tank” rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
Rack-mountable design with three physical configurations via Rotopod accessory (sold separately)
Multi-voltage power supply for worldwide use
