Yamaha DTX522K

Unser Preis Auf Anfrage

Lieferzeit: Auf Anfrage

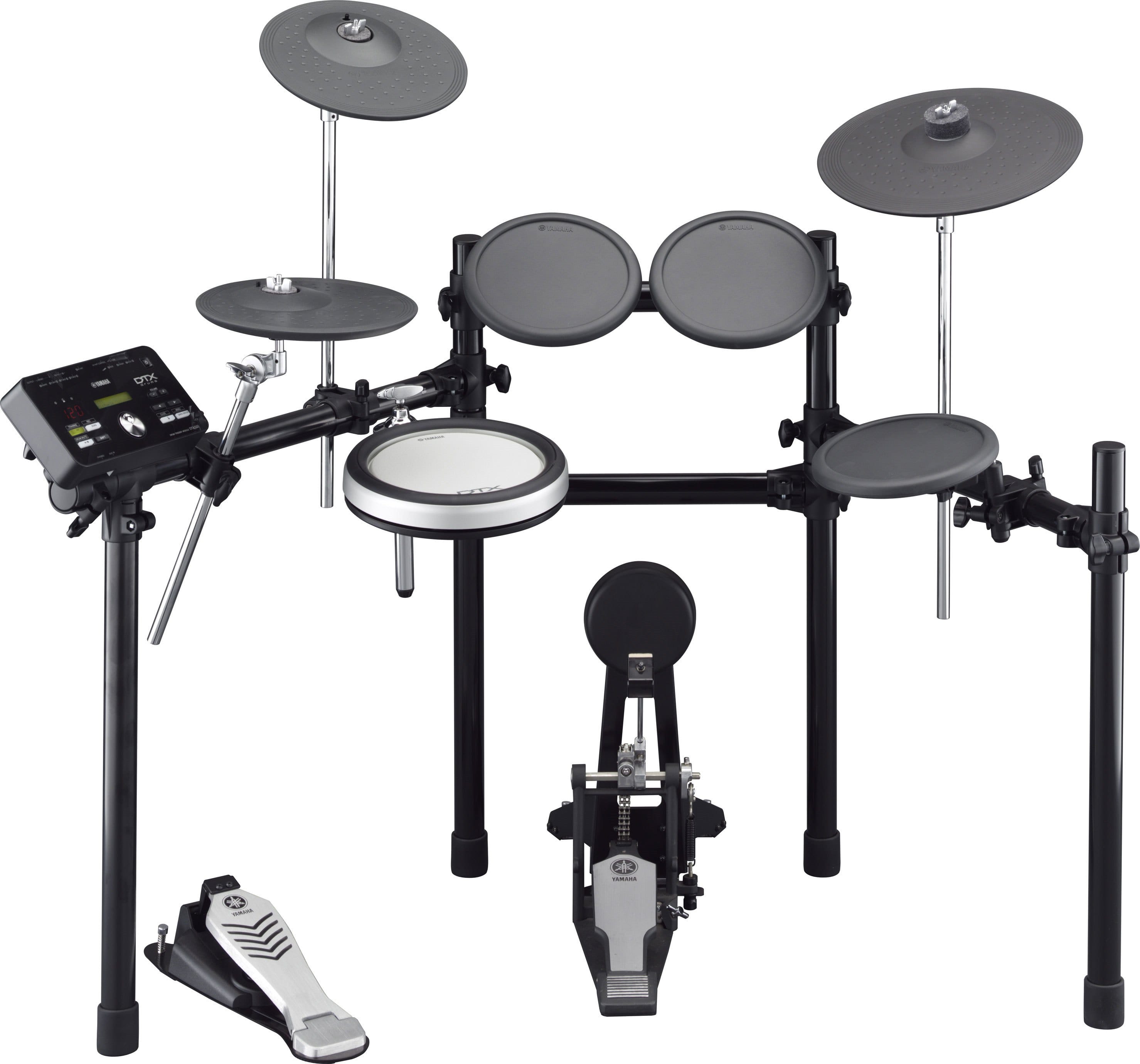

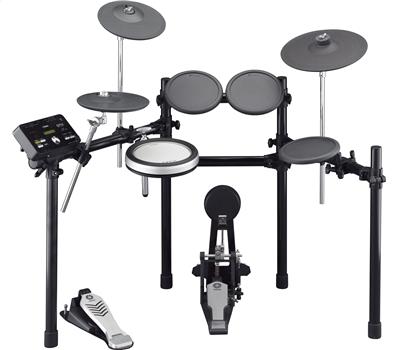

Yamaha DTX522K ELECTRONIC DRUM SET

E-Drum Kit ohne Kickdrum Pedal !
Das DTX522K verfügt über eine DTX-PAD Snare, erweitert um vollkommen neu entwickelte Tom-Pads sowie eine exklusive 3-zonige Hi-Hat mit passenden Cymbal-Pads. Das Setup bietet alle Sounds und Features des DTX502-Moduls in einer ausgesprochen erschwinglichen Kit-Konfiguration.

Features
Specs

		DTX562K	DTX542K	DTX532K	DTX522K
Configuration

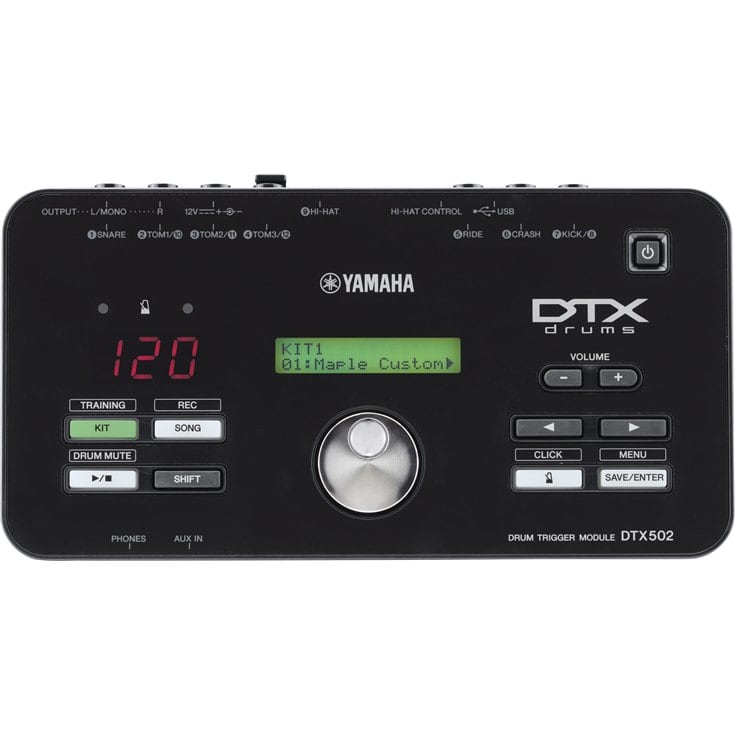

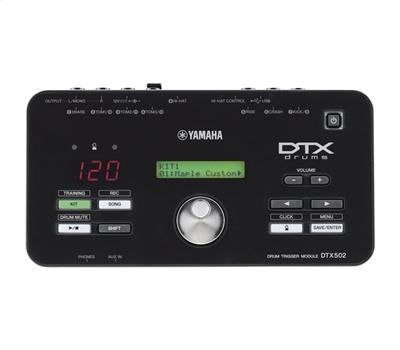

Trigger Module		DTX502	DTX502	DTX502	DTX502
Rack System		RS502	RS502	RS502	RS502
Pad Set		DTP562	DTP542	DTP532	DTP522
Size/Weight (Trigger Module)
Dimensions	Width	251 mm	251 mm	251 mm	251 mm
	Height	130 mm	130 mm	130 mm	130 mm
	Depth	48 mm	48 mm	48 mm	48 mm
Gewicht	Gewicht	610 g	610 g	610 g	610 g
Tone generator
Maximum Polyphony		32 notes	32 notes	32 notes	32 notes
Voices		Drum and percussion: 691,Melodies: 128	Drum and percussion: 691,Melodies: 128	Drum and percussion: 691,Melodies: 128	Drum and percussion: 691,Melodies: 128
Effects		Reverb: 9, Master EQ: 2 bands	Reverb: 9, Master EQ: 2 bands	Reverb: 9, Master EQ: 2 bands	Reverb: 9, Master EQ: 2 bands
Drum kits		Preset: 50 User: 50 (Total memory capacity of 1MB.)	Preset: 50 User: 50 (Total memory capacity of 1MB.)	Preset: 50 User: 50 (Total memory capacity of 1MB.)	Preset: 50 User: 50 (Total memory capacity of 1MB.)
Sequencer
Note Capacity		Approx. 104,000 Notes (Total memory capacity of 1MB.)	Approx. 104,000 Notes (Total memory capacity of 1MB.)	Approx. 104,000 Notes (Total memory capacity of 1MB.)	Approx. 104,000 Notes (Total memory capacity of 1MB.)
Note Resolution		96 ppq (parts per quarter note)	96 ppq (parts per quarter note)	96 ppq (parts per quarter note)	96 ppq (parts per quarter note)
Song recording type		Real-time replace	Real-time replace	Real-time replace	Real-time replace
Song tracks		1 track	1 track	1 track	1 track
Songs		Demo: 1, Practice: 37, Pad: 22, User: 40	Demo: 1, Practice: 37, Pad: 22, User: 40	Demo: 1, Practice: 37, Pad: 22, User: 40	Demo: 1, Practice: 37, Pad: 22, User: 40
Sequence formats		Proprietary, SMF format 0/1	Proprietary, SMF format 0/1	Proprietary, SMF format 0/1	Proprietary, SMF format 0/1
Click
Tempo		30 to 300 BPM, Tap Tempo supported.	30 to 300 BPM, Tap Tempo supported.	30 to 300 BPM, Tap Tempo supported.	30 to 300 BPM, Tap Tempo supported.
Beat		1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16	1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16	1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16	1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
Timing		Accent, Quarter note, Eighth note, Sixteenth note, Triplet	Accent, Quarter note, Eighth note, Sixteenth note, Triplet	Accent, Quarter note, Eighth note, Sixteenth note, Triplet	Accent, Quarter note, Eighth note, Sixteenth note, Triplet
Training Functions		Groove Check, Rhythm Gate, Measure Break, Tempo Up/Down, Change Up, Pad Gate, Part Mute, Fast Blast	Groove Check, Rhythm Gate, Measure Break, Tempo Up/Down, Change Up, Pad Gate, Part Mute, Fast Blast	Groove Check, Rhythm Gate, Measure Break, Tempo Up/Down, Change Up, Pad Gate, Part Mute, Fast Blast	Groove Check, Rhythm Gate, Measure Break, Tempo Up/Down, Change Up, Pad Gate, Part Mute, Fast Blast
Other

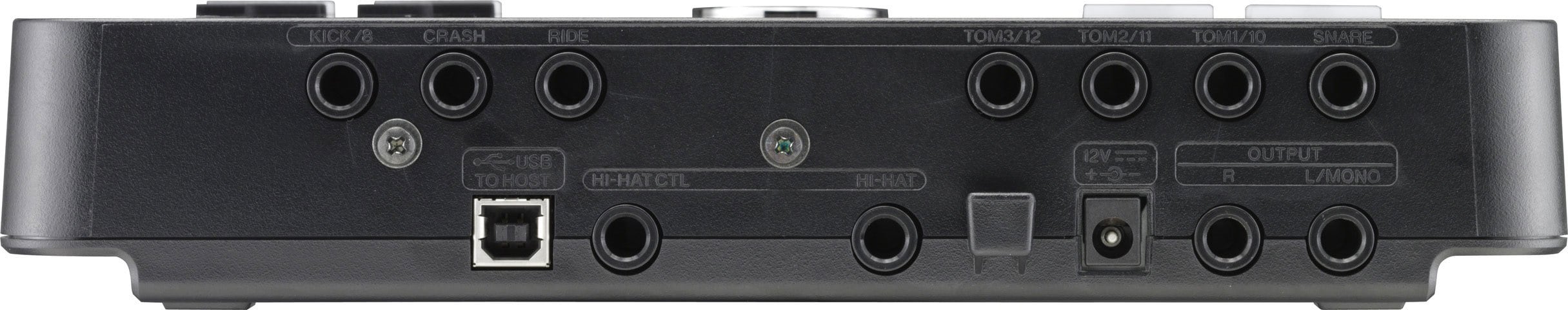

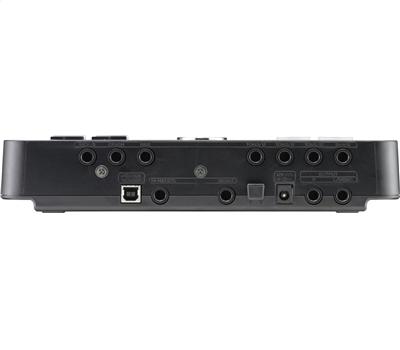

Connectors		OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), Trigger inputs 1, 5, 6, 9 (Standard stereo phone, L: Trigger, R: Rim switch), Trigger inputs 2, 3, 4, 7 (Standard stereo phone, L: Trigger, R: Trigger), HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), USB TO HOST	OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), Trigger inputs 1, 5, 6, 9 (Standard stereo phone, L: Trigger, R: Rim switch), Trigger inputs 2, 3, 4, 7 (Standard stereo phone, L: Trigger, R: Trigger), HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), USB TO HOST	OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), Trigger inputs 1, 5, 6, 9 (Standard stereo phone, L: Trigger, R: Rim switch), Trigger inputs 2, 3, 4, 7 (Standard stereo phone, L: Trigger, R: Trigger), HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), USB TO HOST	OUTPUT [L/MONO] (Standard mono phone), OUTPUT [R] (Standard mono phone), Trigger inputs 1, 5, 6, 9 (Standard stereo phone, L: Trigger, R: Rim switch), Trigger inputs 2, 3, 4, 7 (Standard stereo phone, L: Trigger, R: Trigger), HI-HAT CONTROL (Standard stereo phone), AUX IN (Stereo Mini), PHONES (Standard stereo phone), USB TO HOST
Accessories		Power adaptor (PA-130), Module holder, Module holder fastening screws x2, Owner's Manual	Power adaptor (PA-130), Module holder, Module holder fastening screws x2, Owner's Manual	Power adaptor (PA-130), Module holder, Module holder fastening screws x2, Owner's Manual	Power adaptor (PA-130), Module holder, Module holder fastening screws x2, Owner's Manual
Audio Import
Samples		20 waves (maximum)	20 waves (maximum)	20 waves (maximum)	20 waves (maximum)
Sample Data Bits		16 bits	16 bits	16 bits	16 bits
Sampling Time * Mono/Stereo		44.1kHz: 12 sec (mono)	44.1kHz: 12 sec (mono)	44.1kHz: 12 sec (mono)	44.1kHz: 12 sec (mono)
Sample formats		WAV, AIFF	WAV, AIFF	WAV, AIFF	WAV, AIFF
