| Image Sensor: |
1/2.3" 16 M-flexible CMOS sensor
|

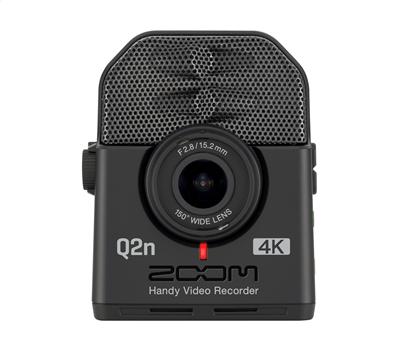

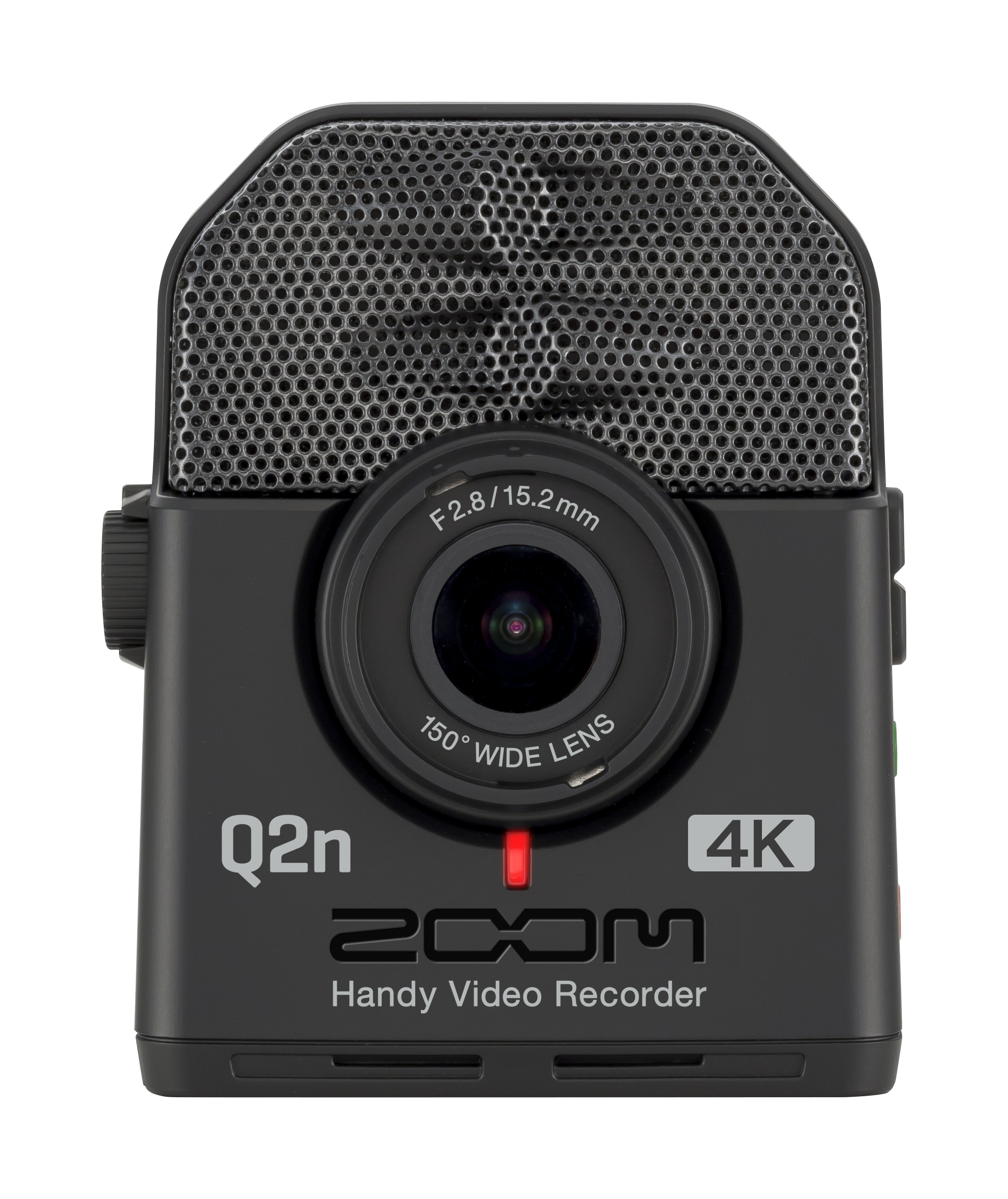

| Lens: |
F 2.8, 150° FOV
|
| Video Format: |
MPEG-4 AVC/H.264 (MOV)
|
| Video resolutions: |
4K: 30 p, 25 p, 24 p
1080: 60 p, 50 p, 30 p, 25 p, 24 p
720: 30 p, 25 p
|
| Audio Formats: |
WAV: 96 kHz/24-bit, 48 kHz/24-bit, 44.1 kHz/16-bit
|
| Audio Functions: |
• LO-CUT: Off, 80 Hz, 120 Hz, 160 Hz
• AUTO GAIN: OFF, CONCERT, SOLO, MEETING
• DELAY: 0.0 F, 0.5 F–10.0 F (only during web camera use)
• DIRECT MONITOR ON/OFF (only during USB mic use)
|
| Image functions: |
FOV (5 steps): WIDE–0–TELE
SCENE Settings
• AUTO
• OUTDOOR
• SUNSET
• NIGHT
• CONCERT LIGHT
• JAZZ CLUB,
• DANCE CLUB
• MONOCHROME
• SEPIA
• FILM
• X-PROCESS
• FLAT
|

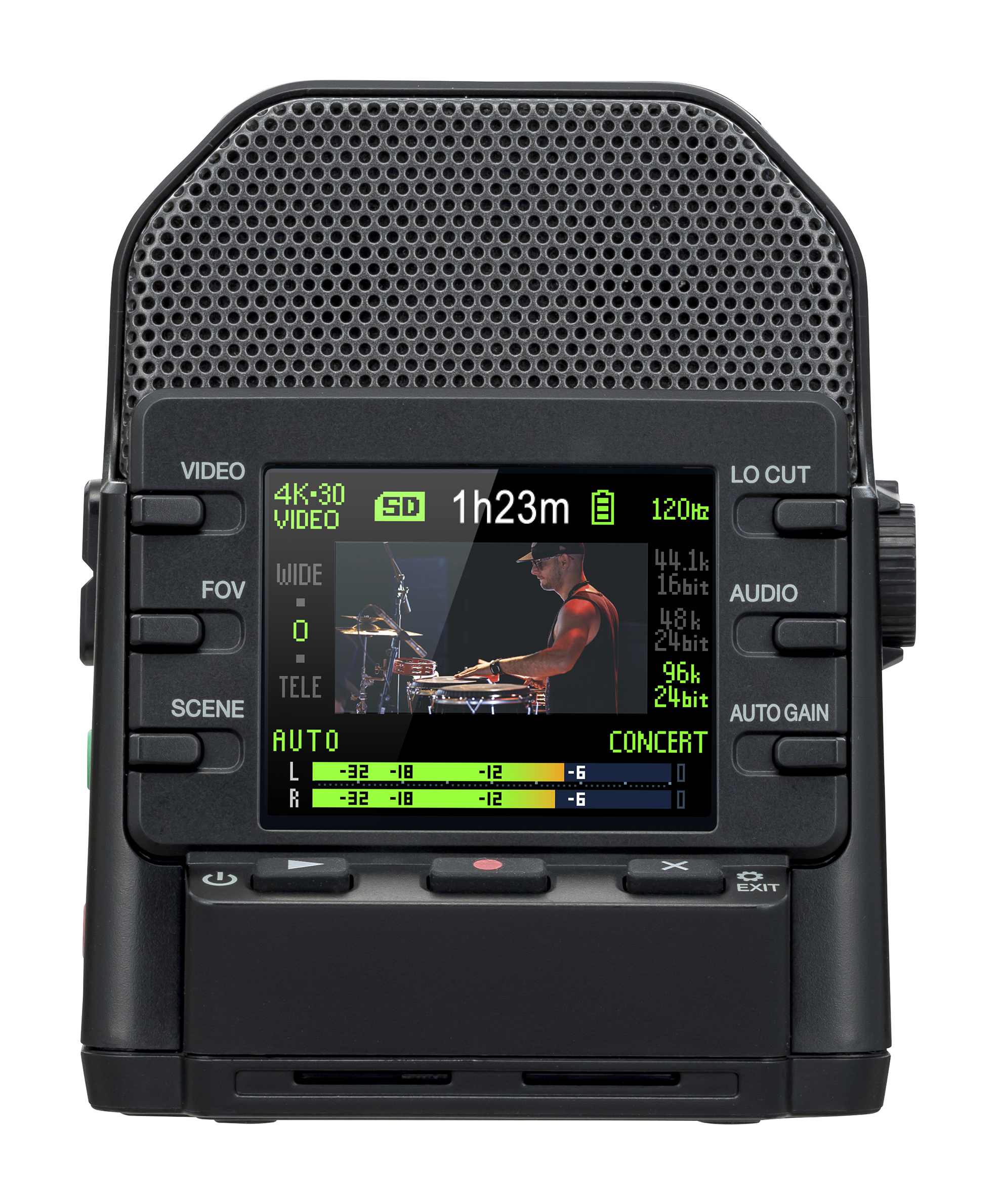

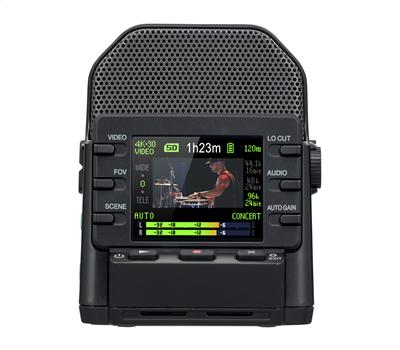

| Display: |
1.77" full-color LCD (160 × 128)
|
| Audio inputs: |
Mic
Fixed 120° XY stereo mic
Maximum sound pressure: 120 dBSPL
Input gain: −∞ db – +39 dB
Line
Input connector: stereo mini jack (supports plug-in power)
Input gain: −∞ db – +39 dB
2 kΩ or higher input impedance
Plug-in power (2.5 V) supported
|

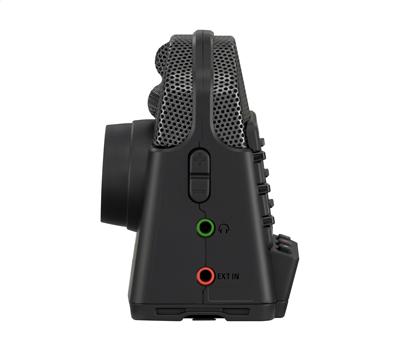

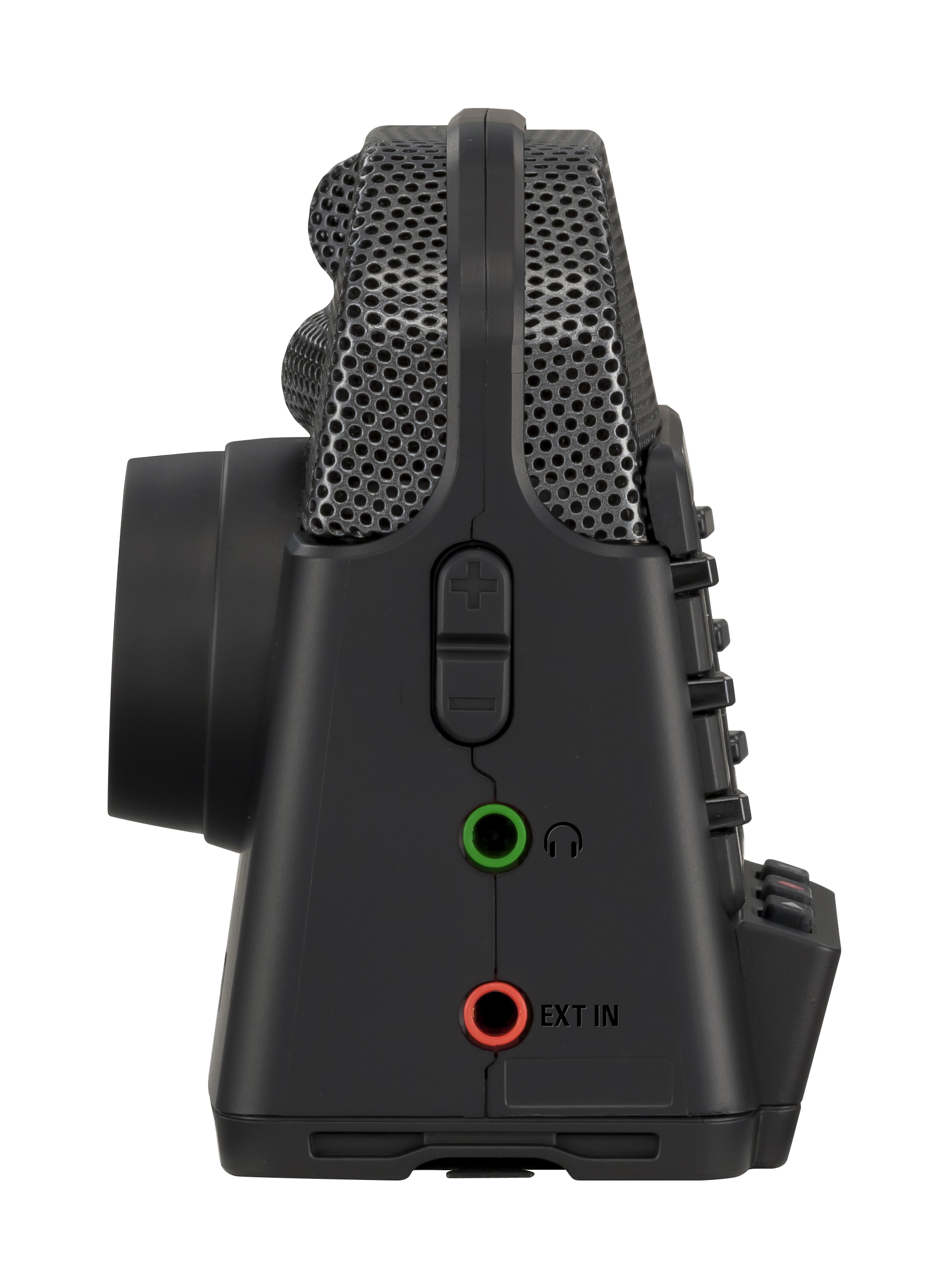

| Output connector: |
Combined headphone/line stereo mini jack
HDMI micro Type D
|
| Built-in speaker: |
300 mW 8 Ω mono speaker
|
| Recording media: |
microSDHC/microSDXC (class 10 or higher, 256 GB maximum)
|

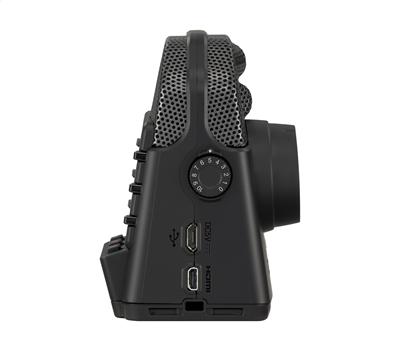

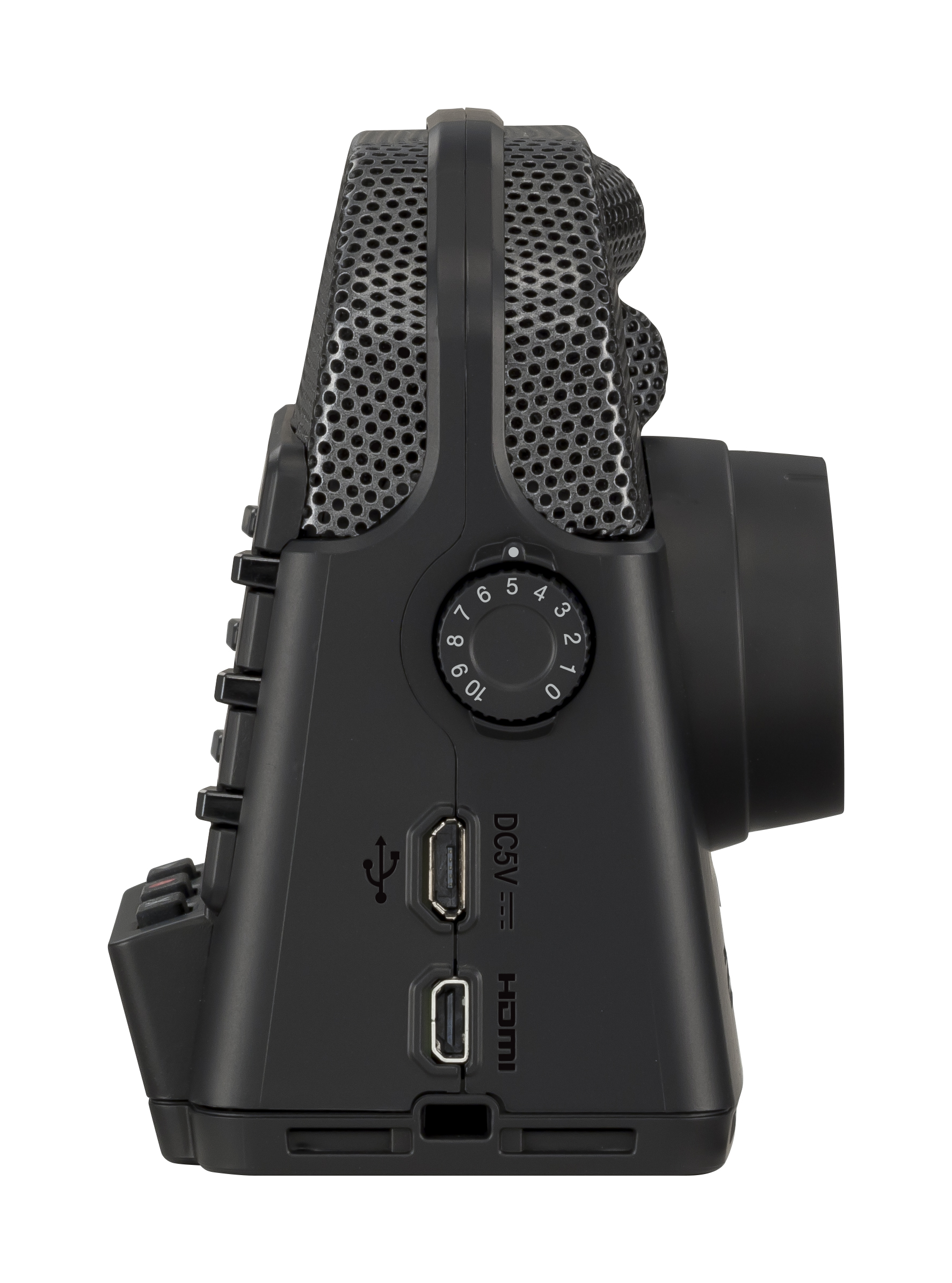

| USB: |
micro USB
WEBCAM
Class: UVC 1.0 + UAC 1.0
Formats: 720 p WVGA video
48 kHz/16-bit audio
CARD READER
Class: USB Mass Storage
USB MIC
Class: UAC 1.0
Format: 44.1 kHz/16-bit
Note: card reader and USB mic functions support iOS devices
|
| Power: |
2 AA batteries : alkaline LR6 (1.5 V), nickel metal hydride HR6 (1.2 V) or lithium FR6 (1.5 V)
AC adapter (ZOOM AD-17): DC 5 V/1 A
Note: USB bus power supported
|
| Estimated continuous recording time using batteries: |
| Video resolution |
Alkaline LR6 (1.5 V) |
Ni-MH HR6 (1.2 V) |
Lithium FR6 (1.5 V) |
| 720/30 p |
2.0 hours |
3.0 hours |
6.0 hours |
| 1080/30 p |
1.2 hours |
2.0 hours |
4.0 hours |
| 4K/30 p |
0.5 hours |
1.0 hours |
2.0 hours |
Audio quality: 48 kHz/24-bit
• The above values are approximate.
• Continuous battery operation times were determined using in-house testing
methods. They will vary greatly according to use conditions.
|
| External dimensions: |
Main unit (maximum dimensions): 58.7 mm (D) × 68.5 mm (W) × 83.0 mm (H)
|
| Weight (main unit only): |
124 g
|
