Moog Minitaur

EAN/UPC:094922371089
Unser Preis CHF 509.00
Lieferbar: Sofort ab Lager

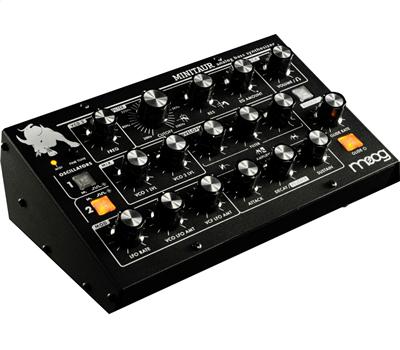

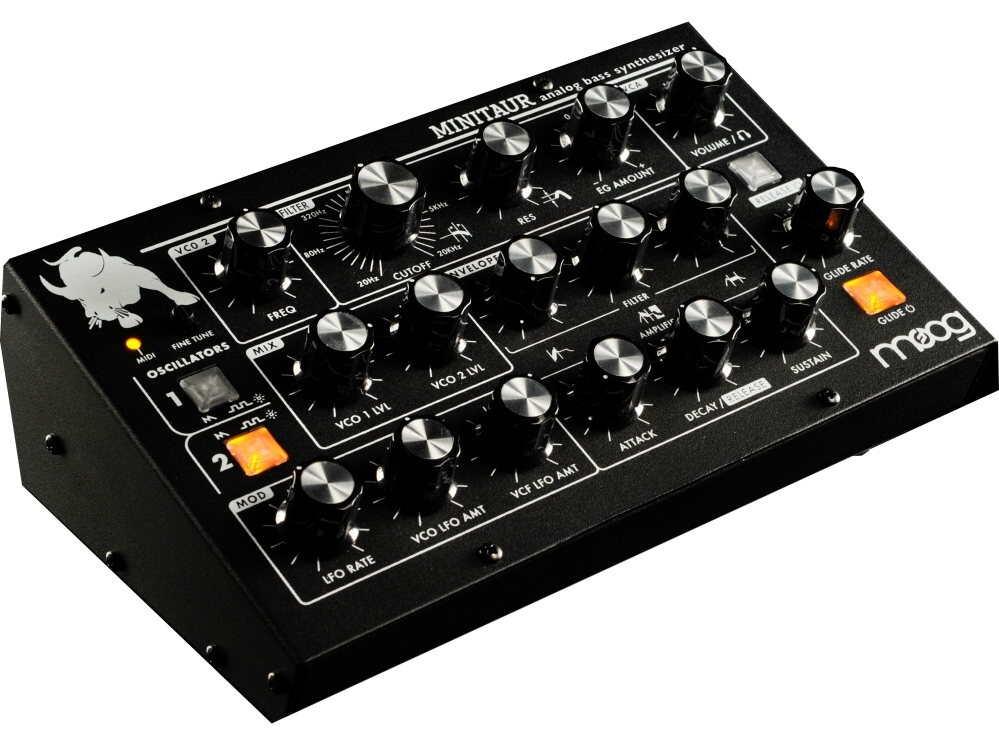

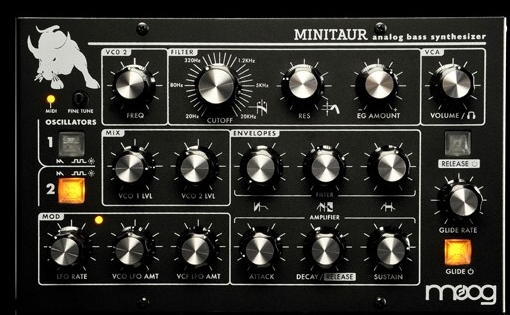

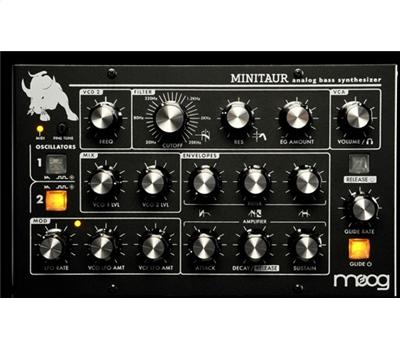

Moog Minitaur Analoger Desktop Synthesizer
.
MINITAUR ist MOOGs neuer Desktop Synthesizer mit 100% analoger Klangerzeugung. Wie der Name vermuten lässt, besitzt der MINITAUR die Klangerzeugung der MOOG Taurus Bass-Synthesizer. Für amtlichen Druck in tiefen Lagen ist also gesorgt. Dank den vielfältigen Kontrollmöglichkeiten über MIDI-, USB- sowie CV ist der MINITAUR auch auf dem ganzen Tastaturbereich ein ausgewachsener MOOG Synthesizer.

  • Two oscillators with Sawtooth (Original Taurus) and Square wave-shapes for each VCO. Recreate sounds of the original Taurus with sawtooth waves, or create new sounds with square waves or a combination of both.
  • 2 Mixer VCAs for VCO levels control of Oscillators 1 and 2.
  • Moog Ladder Filter with adjustable resonance delivers classic Taurus 1 and 3 bass and boom.
  • Two Minimoog style ADSR Envelope Generators for modulating VCF and VCA. The Decay and Release segments are controlled by the Decay knob, while the Release segment is enabled or disabled via Release On/Off switch.
  • Midi-syncable LFO with Controls for Rate, VCO LFO Amount, and VCF LFO Amount
  • DIN MIDI and MIDI over USB offer complete control of the Minitaur's sound engine.
  • Analog Control inputs for Pitch, Filter, Volume and Gate. Use an EP2 or CV to connect and control MInitaur with everything from Modulars to Moogerfoogers.
  • External audio input for processing external audio through the Mixer and Filter section of Minitaur.
  • Headphone output with 1/8" connection.
  • Compact rugged steel chassis that is built like a tank.
  • VCO 2 FREQ
    +/-12 Semitones
  • HARD SYNC
    On/Off
  • OSCILLATOR CALIBRATION RANGE
    22Hz-6.8KHz. Note range at 8’ = 18 - 116
  • GLIDE
    Select LCR, LCT, EXP - Legato On/Off
  • FILTER
    20Hz-20KHz Moog Ladder Filter
  • MODULATION SOURCES
    LFO (Triange, Square, Saw, Ramp, Sample & Hold), Filter Envelope
  • MODULATION DESTINATIONS
    Oscillator Pitch, Oscillator 2 Pitch only, Filter Cutoff
  • LFO PANEL FEATURES
    Rate control, VCO LFO Amount and VCF LFO Amount
  • ENVELOPES
    2x ADSR Envelopes with Legato On, Legato Off and EG Reset
  • EXTERNAL AUDIO INPUT
    ¼” TS
  • AUDIO OUTPUT
    ¼” TS, ⅛” TRS Headphone with volume control
  • MIDI I/O
    DIN In, and MIDI I/O over USB
  • ASSIGNABLE CV/GATE INPUTS
    Filter CV (Fixed Dest.), Pitch CV (Default), Volume CV (Default), KB Gate (Default)
  • CV TO MIDI CONVERSION
    Yes
  • INCLUDED POWER SUPPLY
    100-250VAC, 50-60Hz, +12VDC
  • WEIGHT
    2.5lbs (1.2kg)
  • DIMENSIONS
    3.1”H x 8.75”W x 5.1”D
  •
    Specifications Subject To Change Without Notice
