Yamaha MG-20 XU

EAN/UPC:4957812557481

Listen Preis:CHF 1030.00

Unser Preis CHF 825.00

20%

Lieferzeit: Auf Anfrage

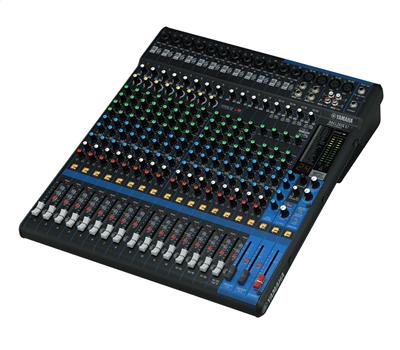

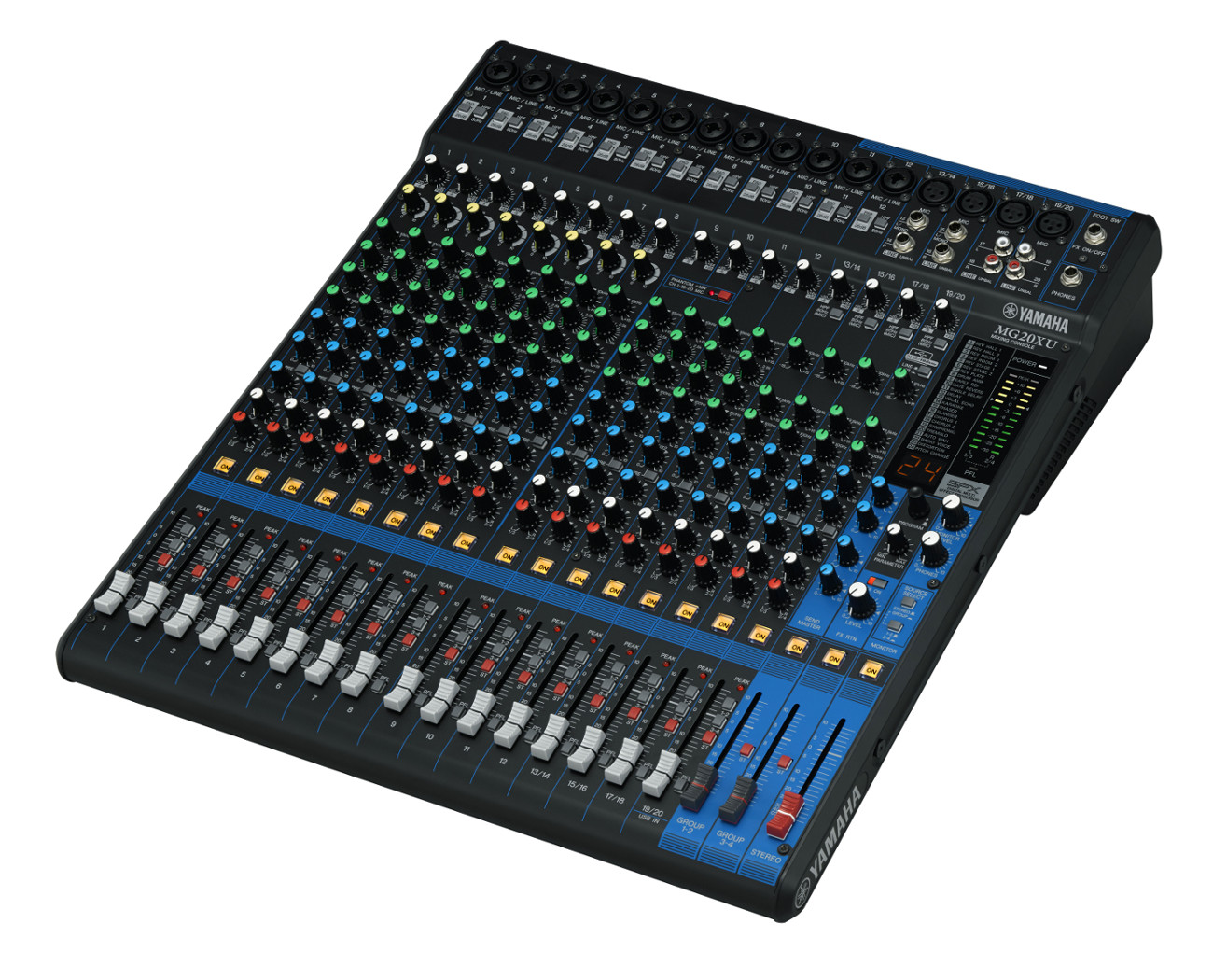

Yamaha MG-20 XU Analog Mixer

Yamaha MG20XU MISCHPULT

20-Kanal Mischpult Konsole: Max. 16 Mikrofon- / 20 Line Eingänge (12 mono + 4 stereo) / 4 GROUP Busse + 1 Stereo Bus / 4 AUX (inkl. FX)

20-Kanal Mischpult Konsole
Max. 16 Mikrofon- / 20 Line.Eingänge (12 mono + 4 stereo)
4 GROUP Busse + 1 Stereo Bus
4 AUX (inkl. FX)
“D-PRE” Mikrofonvorverstärker mit invertierter Darlington Schaltung
1-Knopf Kompressoren
SPX Prozessor mit 24 hochwertigen Effektprogrammen
USB Schnittstelle mit 2 Ein- / 2 Ausgängen (24-bit / 192kHz)
Kompatibel mit dem iPad (Version 2 oder höher) über das Apple iPad Camera Connection Kit / Lightning auf USB Kabel
Cubase AI DAW Software als Download Version im Lieferumfang
PAD Schalter bei Mono-Eingängen
+48V Phantomspeisung

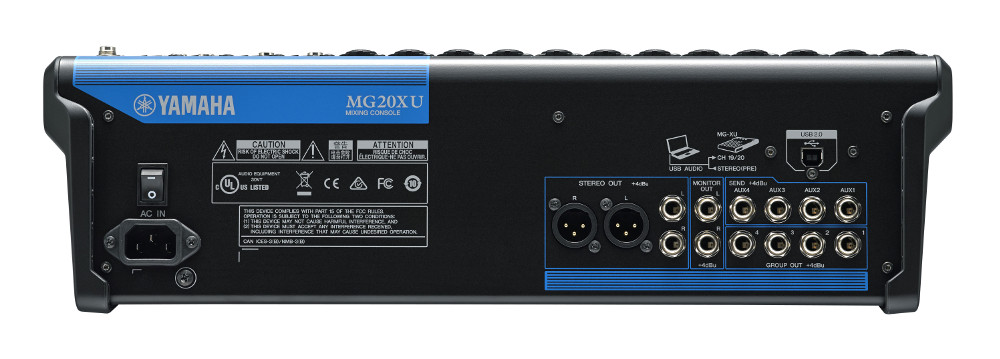

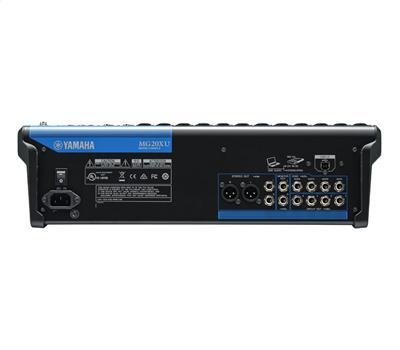

XLR Ausgänge
Internes Universal Netzteil
Rack Mount Kit im Lieferumfang
Metallgehäuse
Maße (B×H×T): 444 mm x 130 mm x 500 mm
7.1kg

Technische Daten		MG20XU
Outline
Mixing capability	On-board processors	SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O	Phantom power	+48 V
I/O	Digital I/O	USB Audio Class 2.0 compliant Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels	Mono[MIC/LINE]	12
	Mono/Stereo[MIC/LINE]	4
	Stereo[LINE]	-
Output Channels	STEREO OUT	2
	MONITOR OUT	1
	PHONES	1
	AUX SEND	4
	GROUP OUT	4
Bus		Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
Input Channel Function	PAD	26 dB (Mono)
	HPF	80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
	COMP	1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
	EQ HIGH	Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
	EQ MID	Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
	EQ LOW	Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
	PEAK LED	LED turns on when post EQ signal reaches 3 dB below clipping
	Level Meter	2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
General specifications
Total harmonic distortion		0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response		+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level	Equivalent input noise	-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Hum & noise level	Residual output noise	-102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk		-78 dB
Power requirements		AC 100 – 240 V, 50 / 60 Hz
Power consumption		36 W
Dimensions	W	444 mm (17.5")
	H	130 mm (5.1")
	D	500mm (19.7")
Net weight		7.1kg (15.7 lbs.)
Accessories		Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Rack-mount kit, Optional Accessory: Foot Switch FC5
Others		Operating Temperature: 0 to +40˚C

0 dBu = 0.775 Vrms Output impedance of signal generator (Rs) = 150Ω
All level controls are nominal if not specified.
Hum & noise level: Noise is measured with A-weighting filter.
Crosstalk： Measured with 1 kHz band pass filter.
