Elektron Octatrack MKII

Unser Preis CHF 1439.00
Lieferbar: Sofort ab Lager

Elektron Octatrack MKII 8 Track Dynamic Performance Sampler
x
.
8 track dynamic
performance sampler


Game-changing hardware
The Octatrack MKII brings enormous sample processing ability into a machine designed for live performance. It redefines how you transform your sounds, as well as how you interact and play with them. It lets you do things that were previously impossible with a single instrument.

Natural born performer
Record samples in real time. Add live time-stretching and pitch-shifting. Use the sequencer to control both internal sounds and external MIDI gear. The Octatrack MKII can also be treated as a small mixing desk for your whole setup. The immediate control makes all the difference.

Audio mutation
The crossfader adds immense depth to your sound. First, choose how you want it to affect your samples. Then nudge the crossfader gently for the most subtle and natural-sounding changes – or knock it back and forth like you’re scratching for rapid and extreme enhancements.




The legend continues
During its seven year life span, the original Octatrack quickly became one of the most widely used live performance samplers. An industry standard if there ever was one. It undoubtedly changed the way gear setups look like and gave artists the power to perform live in the truest sense of the word. Now the Octatrack MKII is here. Sharper, better, more robust. It proudly carries the legacy of its predecessor, confirming the position as the creative artist’s instrument of choice.


Octatrack MKII specifications

Audio track features (x8)
1 × Specialized machine
1 × Track recorder
1 × Amplitude envelope
3 × LFOs
2 × User selectable track effects

MIDI track features (x8)
1 × Arpeggiator
3 × LFOs
10 × configurable CCs
Sequencer
8 × Audio tracks
8 × MIDI tracks
Up to 64 steps per pattern
Individual track lengths
Individual track time signatures
Chromatic, slice, slot, and delay freeze modes
Parameter locks
Trig conditions
Sample-per-step change
Micro timing
Retrig functionality
Swing and slide
Full real-time control

Storage
CompactFlash card storage
Amount of Projects dependent on CF card size
80 MB Flex RAM per project
Static sample streaming from CF card
256 patterns per Project
256 sample slots per Project
8 Arrangements per Project
Track effects
12/24dB multi mode filter
2-band parametric EQ
DJ-style kill EQ
2-10 stage phaser
Flanger
2-5 tap chorus
Spatializer
Comb filter
Compressor
Lo-Fi (SRR, BR, Dist and AM)
Echo freeze delay
Gatebox plate reverb
Spring reverb
Dark reverb

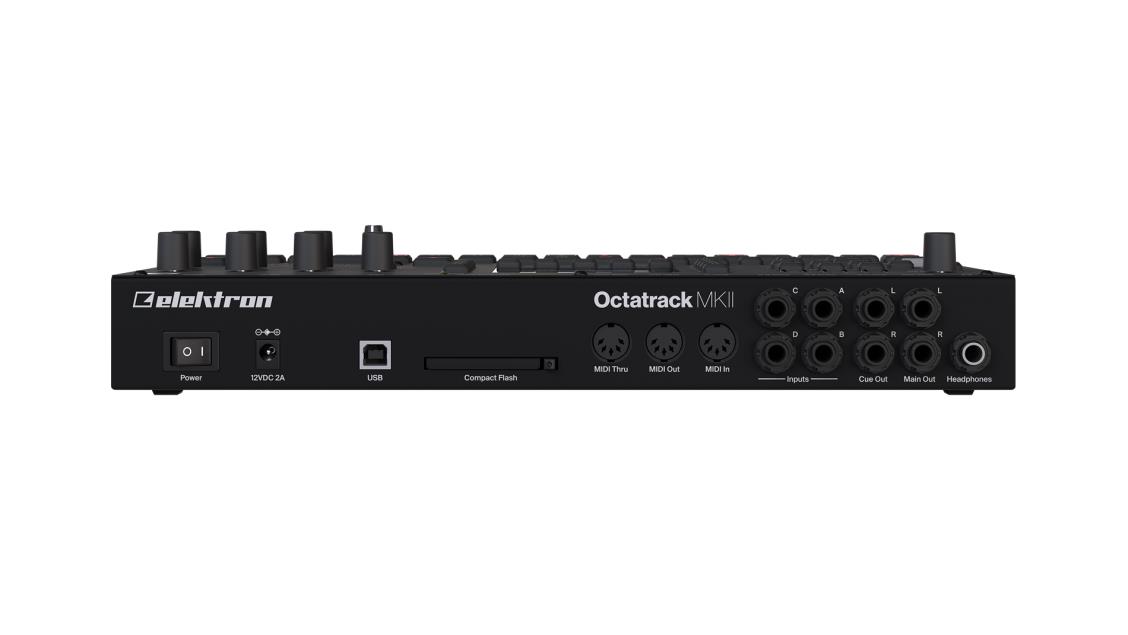

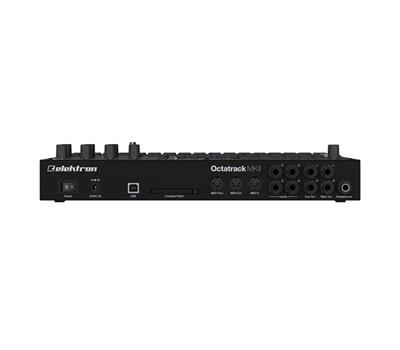

Hardware
128 × 64 pixel OLED screen
MIDI In/Out/Thru
2 × 1/4” impedance balanced main audio out jacks
2 × 1/4” impedance balanced cue audio out jacks
4 × 1/4” balanced/unbalanced external input jacks
1 × 1/4” stereo headphone jack
44.1 kHz, 24-bit D/A and A/D converters
Hi-speed USB 2.0 port
Power inlet: Center positive 5.5 × 2.5 mm barrel jack, 12 V DC, 2 A
Balanced audio outputs
Main outputs level: +17 dBu peak
Output impedance: 440 O unbalanced
Digital S/N ratio: 104 dB (20–20,000 Hz)
Headphones outputs
Headphones out level: +17 dBu peak
Output impedance: 55 O
Balanced audio inputs
Input level: +17 dBu peak
Audio input impedance: 21 kO
Digital S/N ratio: 106 dB (20–20,000 Hz)

Electrical specifications
Unit power consumption: 7 W typical
Compatible Elektron power supply: PSU-3b

Physical specifications
Sturdy steel casing
Dimensions: W 340 × D 184 × H 63 mm
(13.3” × 7.2” × 2.5”) (including knobs, jacks, and rubber feet)
Weight: approximately 2.3 kg (5 lbs)
Maximum recommended ambient operating temperature: +40°C (+104°F)

Miscellaneous
2 GB of Loopmasters samples on the CF card
3 year Elektron warranty

Included in the box
16 GB high speed CompactFlash card
Power Supply PSU-3b
Elektron USB cable
Quick Guide
