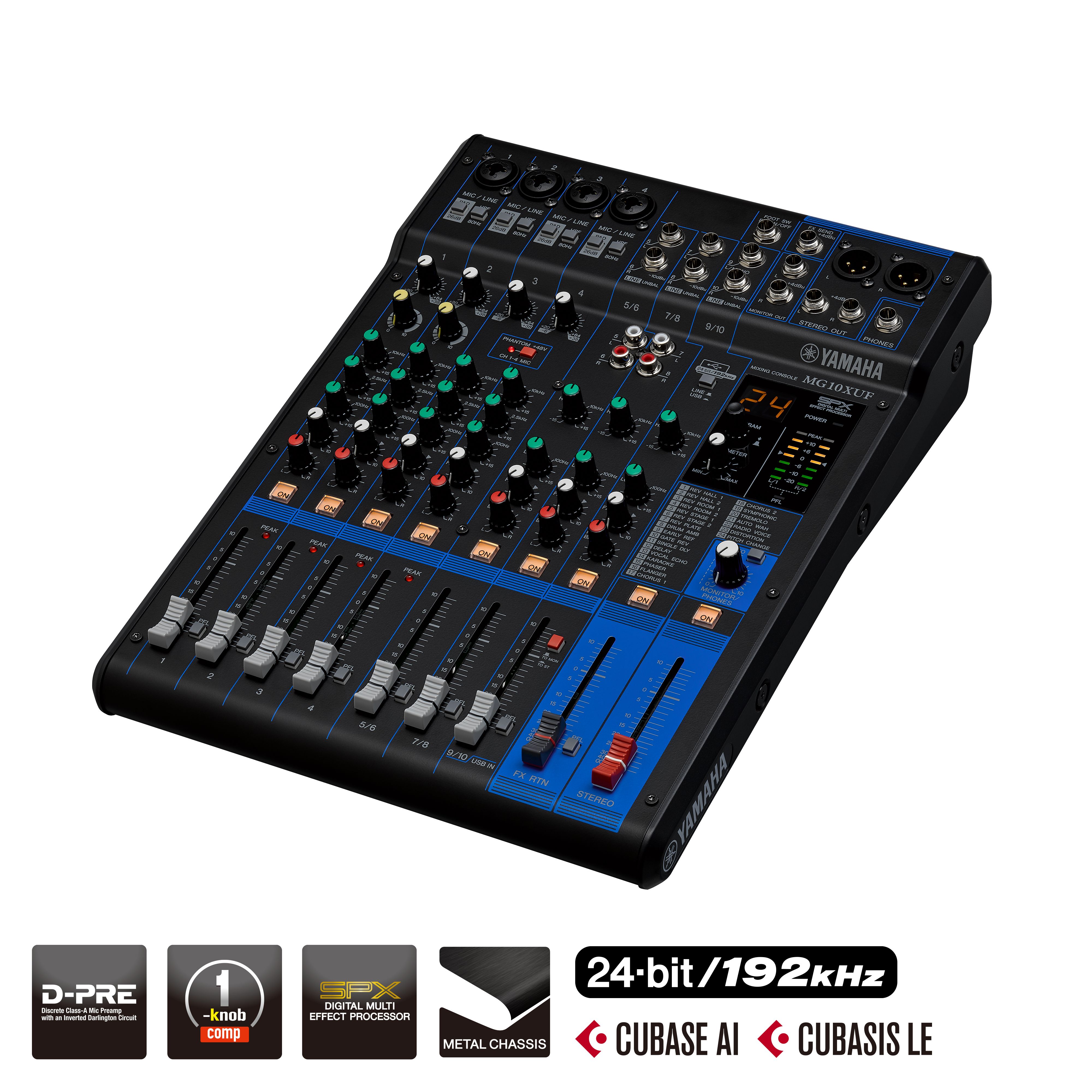

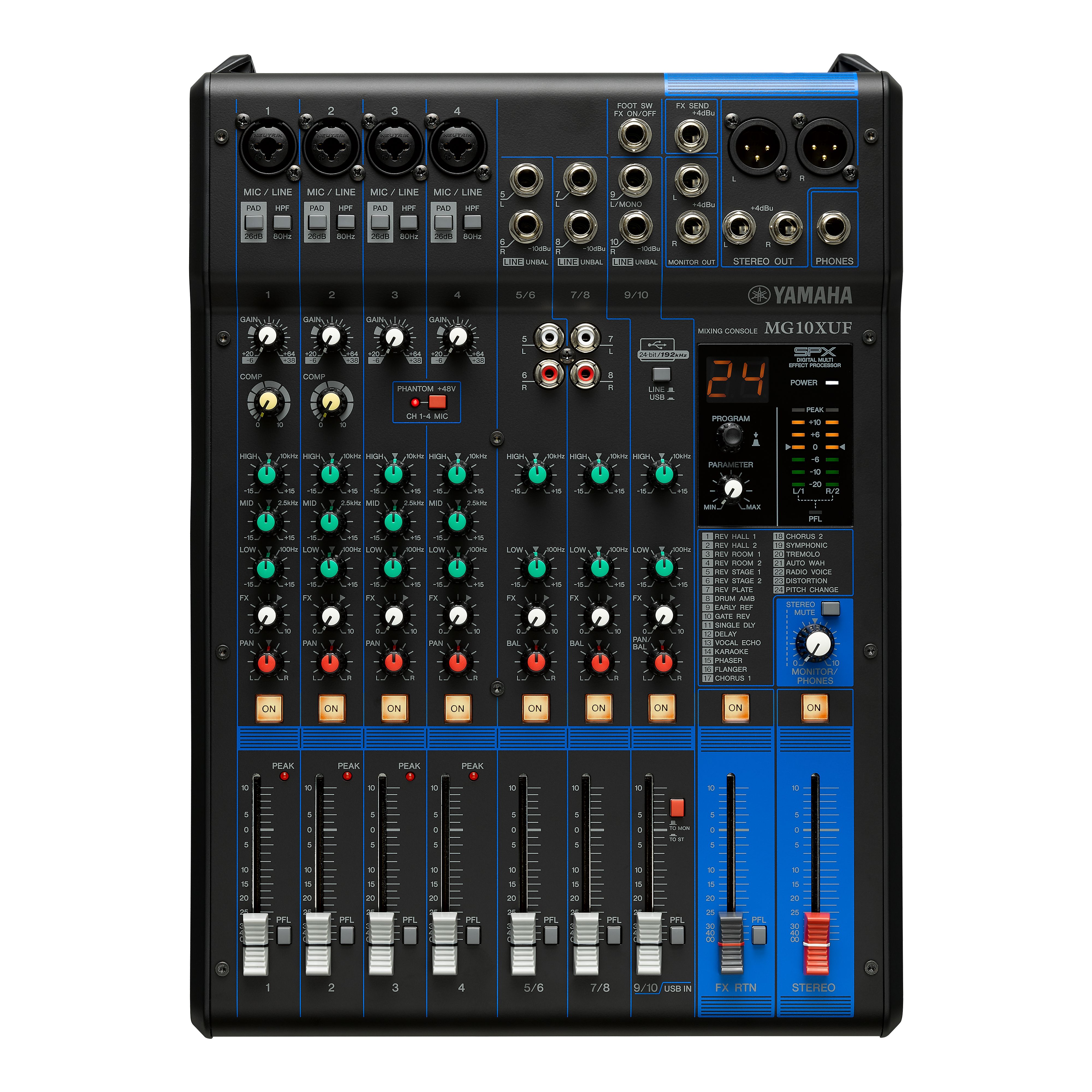

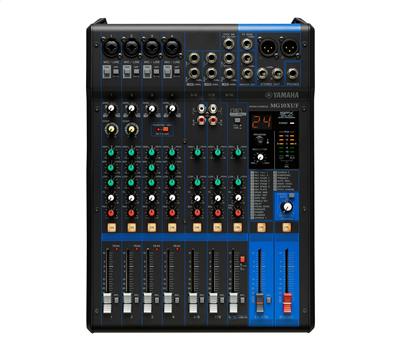

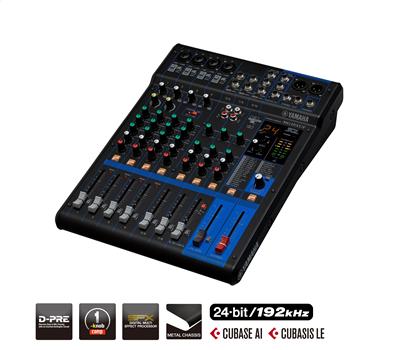

| Outline |
| Mixing capability |
On-board processors |
SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |

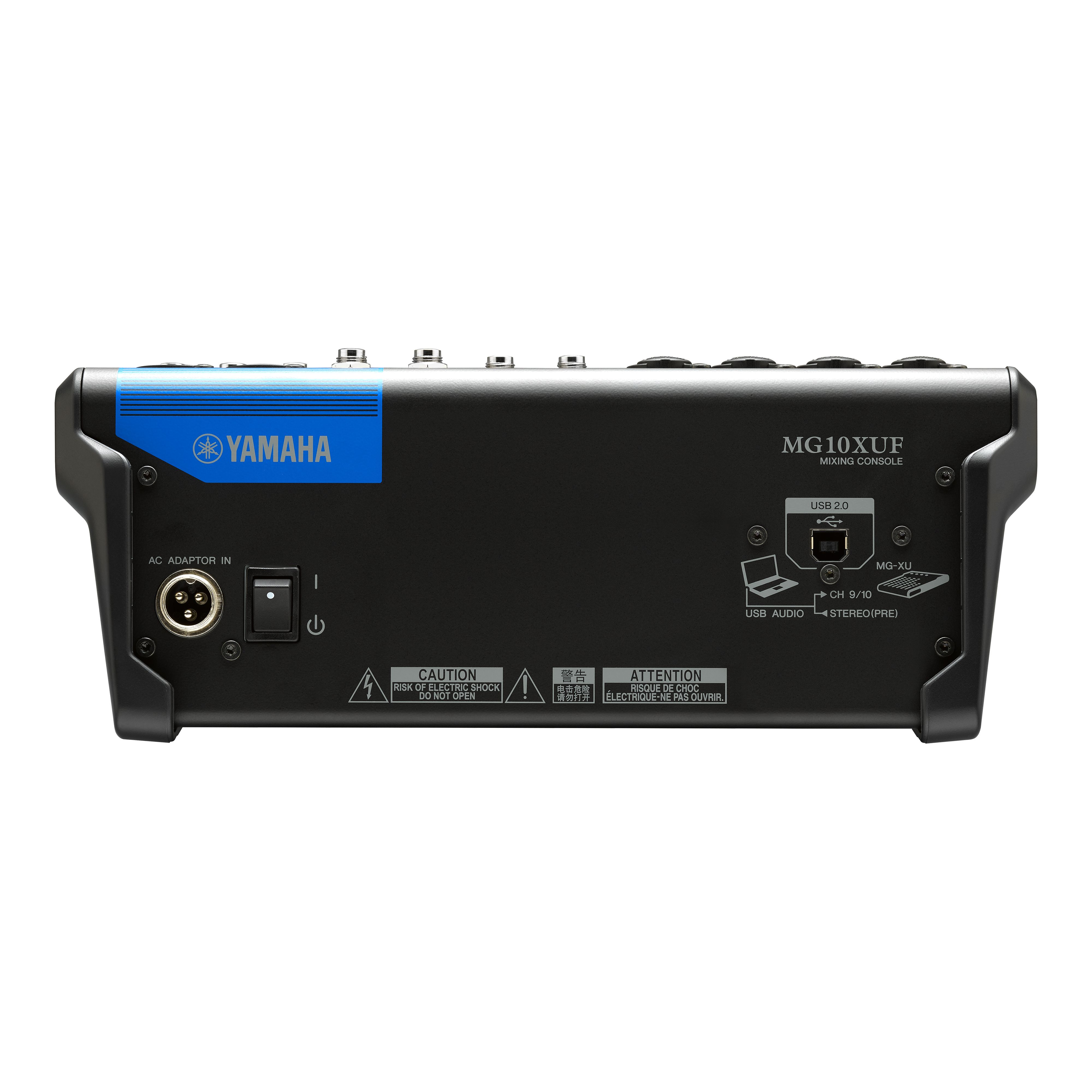

| I/O |
Phantom power |
+48 V |
| Digital I/O |
USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit |
| Input Channels |
Mono[MIC/LINE] |
4 |
| Mono/Stereo[MIC/LINE] |
- |
| Stereo[LINE] |
3 |
| Output Channels |
STEREO OUT |
2 |
| MONITOR OUT |
1 |
| PHONES |
1 |
| AUX SEND |
1 |
| GROUP OUT |
- |
| Bus |
Stereo: 1, AUX[FX]: 1 |
| Input Channel Function |
PAD |
26 dB (Mono) |
| HPF |
80 Hz, 12 dB/oct (Mono) |
| COMP |
1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH |
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID |
Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking |
| EQ LOW |
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED |
LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter |
2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] |
| General specifications |
| Total harmonic distortion |
0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
| Frequency response |
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Hum & noise level |
Equivalent input noise |
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise |
-102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk |
-83 dB |
| Power requirements |
PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha |
| Power consumption |
22.9 W |
| Dimensions |
W |
275 mm (10.8") |
| H |
110 mm (4.3") |
| D |
390 mm (15.4") |
| Net weight |
3.3 kg (7.3 lbs) |
| Accessories |
Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Foot Switch FC5 |
| Others |
Operating Temperature: 0 to +40˚C |
