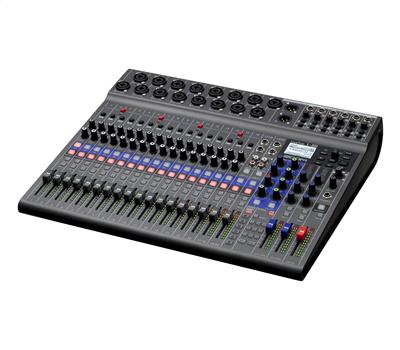

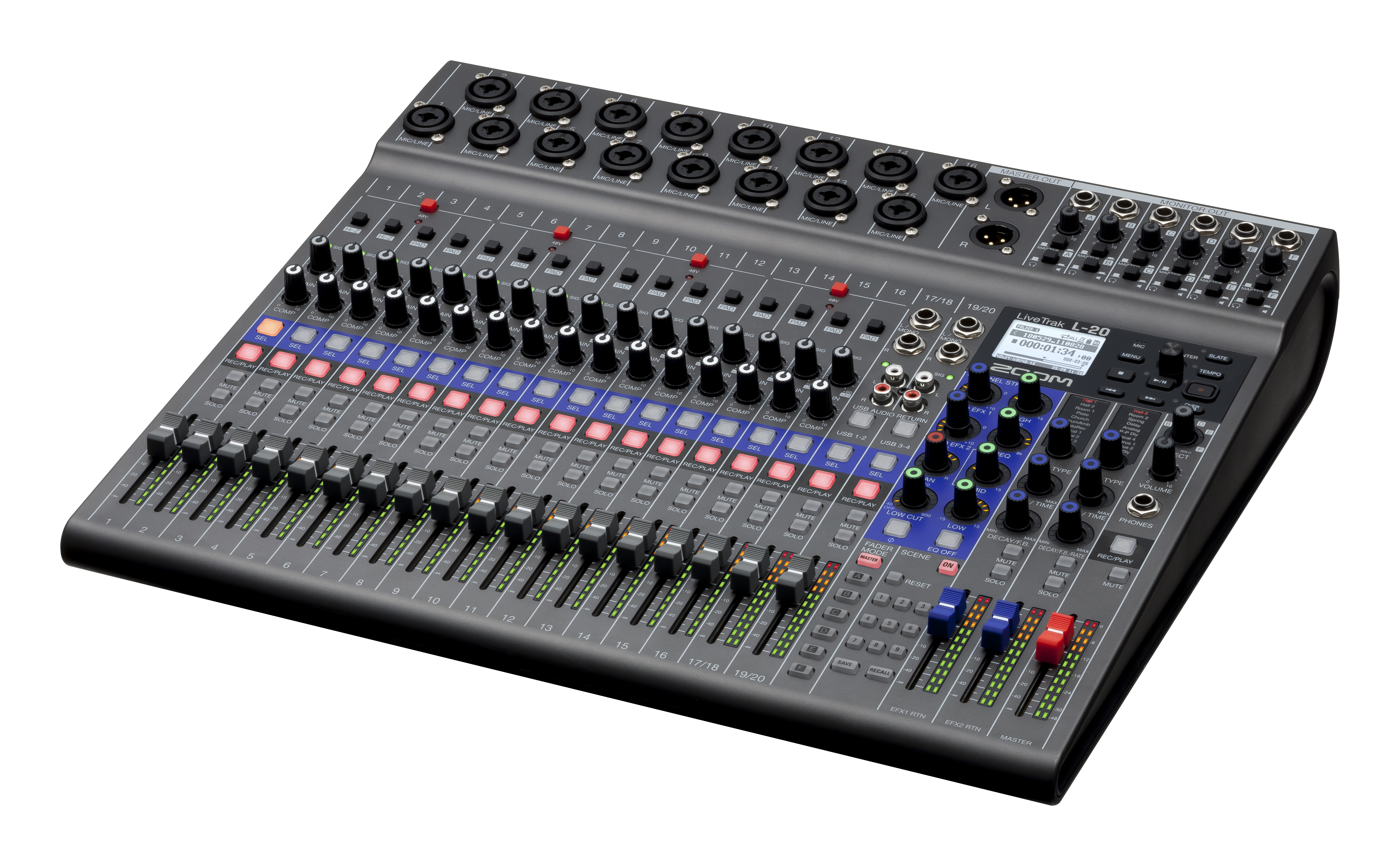

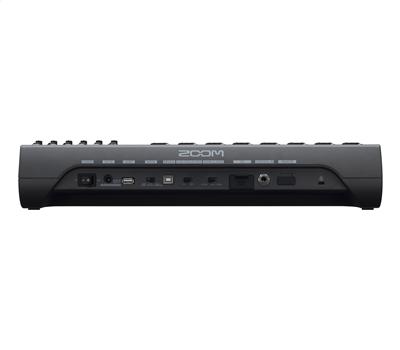

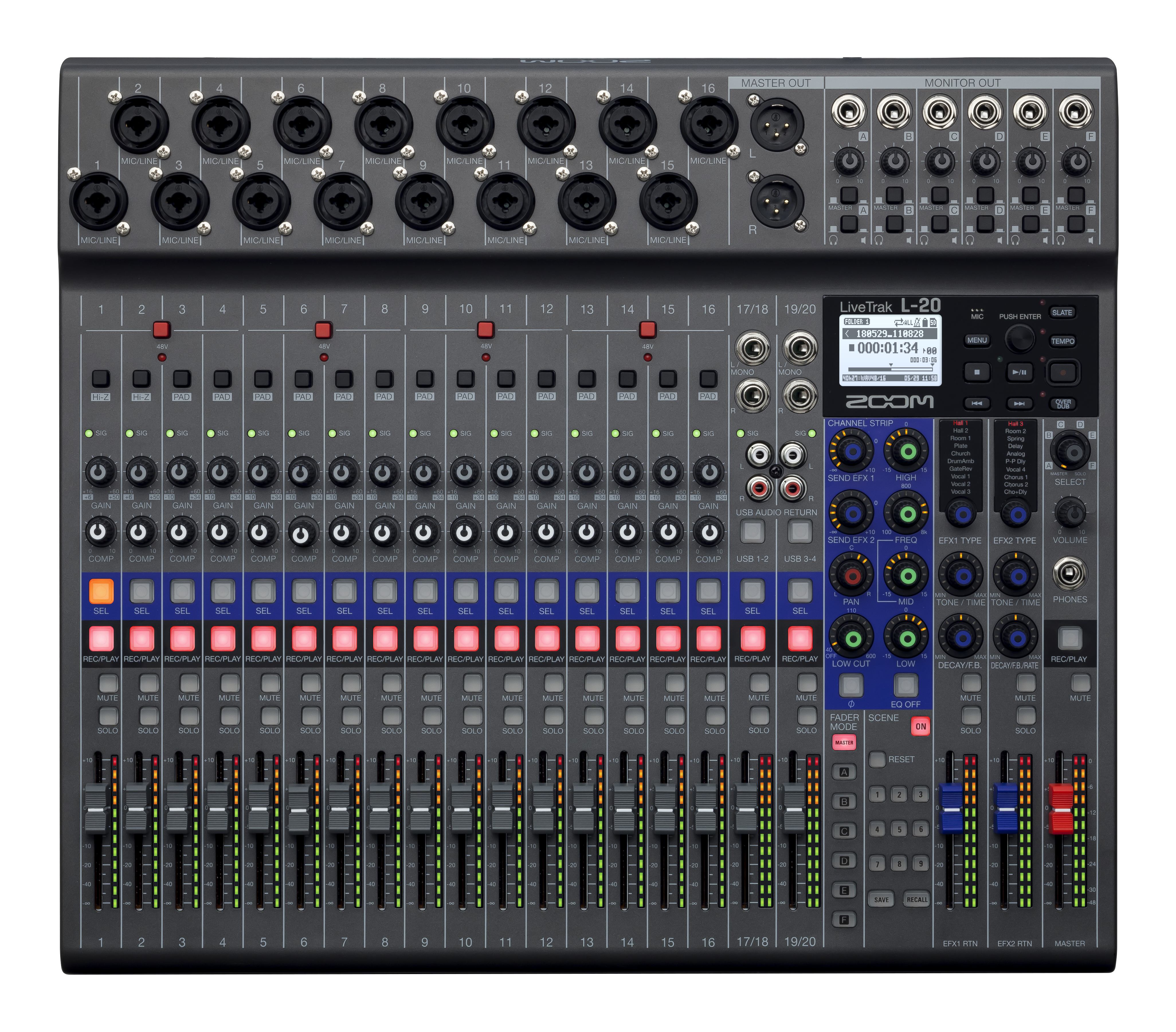

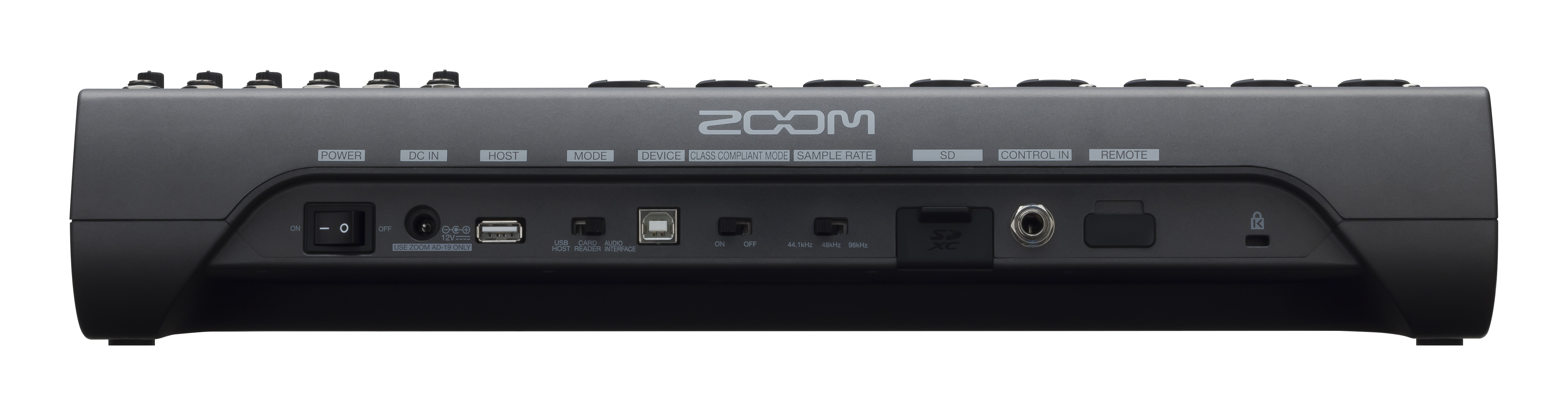

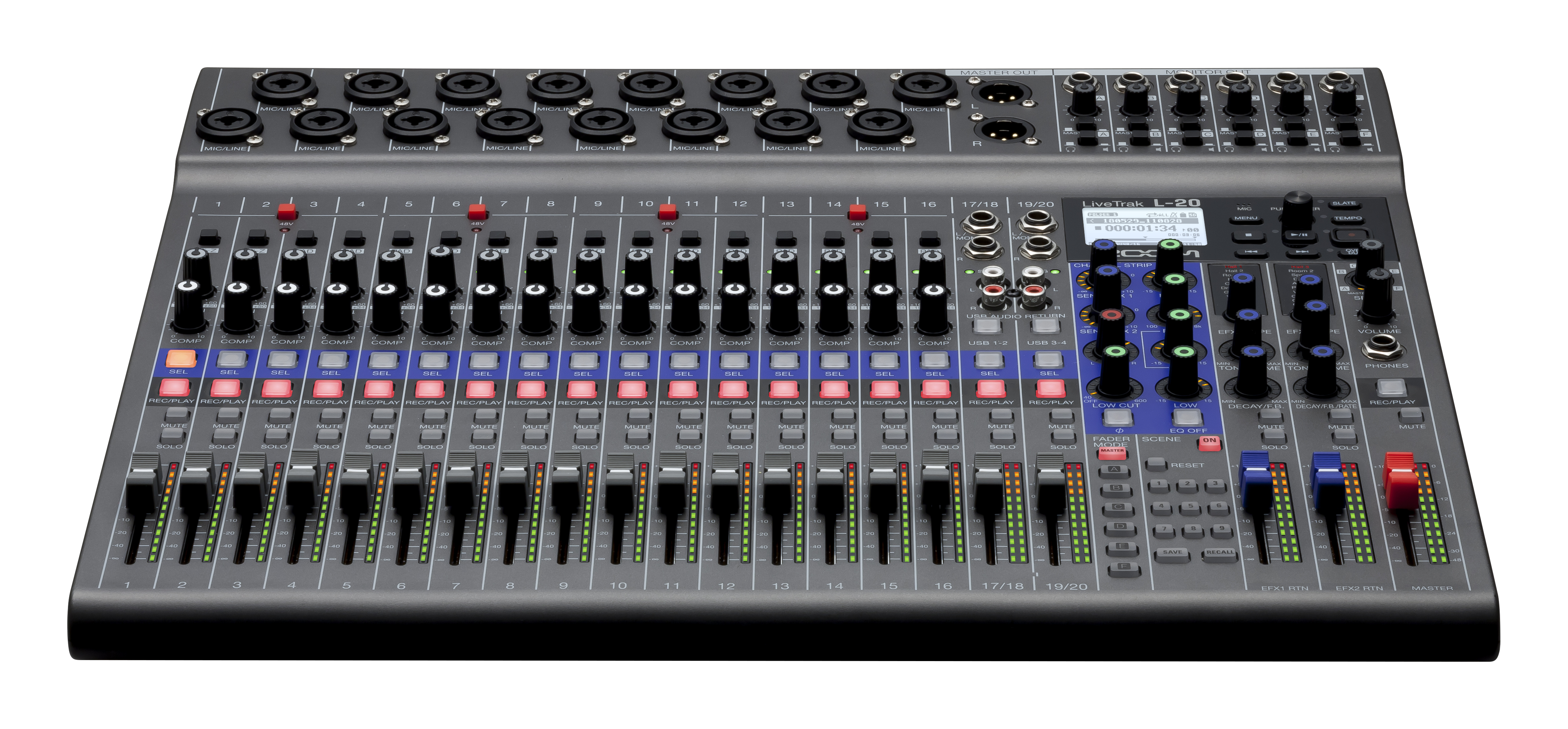

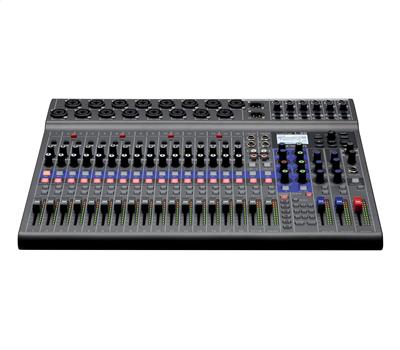

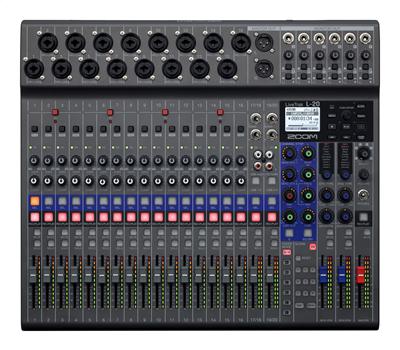

Zoom LiveTrak L-20

EAN/UPC:4515260019861
Zoom LiveTrak L-20
Zoom LiveTrak L-20
Zoom LiveTrak L-20
Zoom LiveTrak L-20
Unser Preis CHF 910.00
Lieferbar: Sofort ab Lager

Zoom LiveTrak L-20 Mixer-Recorder-Audiointerface

ZOOM Livetrak L-20 - Mixer / Recorder / Audiointerface


Das LiveTrak™ L-20 ist die neue digitale Konsole mit allem, was man braucht, um komplexe Produktionen zu mischen, zu monitoren und aufzuzeichnen. Mit 20 diskreten Audiokanälen und sechs individuellen Monitormischungen ist er für größere, fettere Anordnungen konzipiert.

LiveTrak L-20 Features

  • 20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity
  • 22-track simultaneous recording, 20-track playback
  • 22-in/4-out USB audio interface connectivity
  • Records up to 24bit/96kHz audio to SD card
  • 48V phantom power
  • Hi-Z connectivity (channels 1-2)
  • 26dB pad (channels 3-16)
  • Built-in compression control (Channels 1-16)
  • Solo buttons for individual channels
  • Variable frequency low-cut control
  • Main outputs plus 6 customizable monitor outputs
  • Dedicated headphone output for sound engineer
  • Scene saving function, up to 9 scenes saved at a time
  • 20 built-in chorus, delay and reverb effects with adjustable parameters
  • Two effect busses
  • Built-in slate mic
  • Class-compliant mode (for iOS compatibility)
  • Compatible with Remote Mixer app for iPad
  • Automatic recording starting/stopping capability
  • Pre-record function
  • Import/export projects with USB 2.0 host port
  • Compatible functions for ZOOM FS01 footswitch
  • Automatic power-save function



SPECS

NUMBER OF INPUT AND OUTPUT CHANNELS
Inputs:

Mono (MIC/LINE): 16
Stereo (LINE): 2

Output:

MASTER OUT: 1
MONITOR OUT: 6
PHONES : 1

INPUTS 1-8
Mono (MIC/LINE):

Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

Input gain
PAD OFF: +16 – +60dB
PAD ON: − 10 – +34 dB
Hi-Z ON: +6 – +50 dB

Input impedance
XLR: 3 k Ω
TRS: 10 k Ω /1 M Ω (when Hi-Z ON)

Maximum input level
PAD OFF: 0 dBu (at 0 dBFS)
PAD ON: +26 dBu (at 0 dBFS)

Phantom power
+48 V




Stereo (LINE):

Type: TS phone/RCA pin (unbalanced) jacks

Maximum input level : +10 dBu

OUTPUTS
MASTER OUT:

Type: XLR jacks (balanced)
Maximum output level :+14.5 dBu
Output impedance: 100 Ω

MONITOR OUT A–F (with balanced output) connected to monitor speakers:

Type: TRS phone jacks (balanced)
Maximum output level: +14.5 dBu
Output impedance: 100 Ω

MONITOR OUT A– F (with unbalanced output) connected to headphones:

Type: Standard stereo phone jacks
Maximum output level: 42 mW + 42 mW at 60 Ω
Output impedance: 100 Ω

PHONES:

Type: Standard stereo phone jacks
Maximum output level: 42 mW + 42 mW at 60 Ω
Output impedance: 100 Ω

BUSES
MASTER:

1

MONITOR:

6

SEND EFX:

2

CHANNEL STRIP
COMP:
LOW CUT:

40–600 Hz, 12dB/OCT

EQ:

HIGH: 10 kHz, ± 15 dB, shelving
MID: 100 Hz – 8 kHz, ± 15 dB, peaking
LOW: 100 Hz, ± 15 dB, shelving

PHASE:
LEVEL METERS
Level segments:

12

SEND EFFECTS
Effects:

20 types:

EFX 1
Hall 1 (Reverb)
Hall 2 (Reverb)
Room 1 (Reverb)
Plate (Reverb)
Church (Reverb)
DrumAmb (Reverb)
GateRev (Reverb)
Vocal 1 (Delay + Hall Reverb)
Vocal 2 (Delay + Mono Reverb)
Vocal 3 (Delay + Plate Reverb)

EFX 2
Hall 3 (Reverb)
Room 2 (Reverb)
Spring (Reverb)
Delay (Delay)
Analog (Delay)
P-P Dly (Delay)
Vocal 4 (Delay + Room Reverb)
Chorus 1 (Stereo Chorus)
Chorus 2 (Mono Chorus)
Cho+Dly (Chorus + Delay)

RECORDER
Maximum simultaneous recording tracks:

22 at 44.1/48/96 kHz

Maximum simultaneous playback tracks:

20

Recording format:

WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo

Recording media:

4 GB – 32 GB SDHC cards (Class 10 or higher)
64 GB – 512 GB SDXC cards (Class 10 or higher)

AUDIO INTERFACE
44.1/48 kHz:

Recording: 22 channels
Playback: 4 channels

Bit depth:

24-bit

Interface:

USB 2.0

SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE
Windows:

OS: Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit)
CPU: Intel® Core i3 or faster*
USB: USB 3.0/USB 2.0**

* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.

Mac:

OS: Mac® OS X 10.11 / 10.12 / 10.13
CPU: Intel® Core i3 or faster
USB: USB 3.0/USB 2.0*

* Operation is not guaranteed when used with USB hubs or expansion cards.

iPhone/iPad:

OS: iOS 9 / 10 / 11

* Apple Lightning-to-USB Camera Adapter required.

CARD READER
Class:

Class

USB HOST
Class:

USB 2.0 High Speed


Sampling frequency:

44.1/48/96 kHz

Frequency characteristics:

44.1 kHz: −1.0 dB, 20 Hz – 20 kHz
96 kHz: −3.0 dB, 20 Hz – 40 kHz

Equivalent input noise:

Actual measurements: −128dB EIN (IHF-A) at +60dB/150Ω input

Display:

LCD with backlight (128×64 resolution)

Power:

AD-19 AC adapter (DC12V 2A)

Power consumption:

24 W maximum

External dimensions:

445 mm (W) × 388.4 mm (D) × 82.6 mm (H)

Weight (main unit only):

3.71 kg
